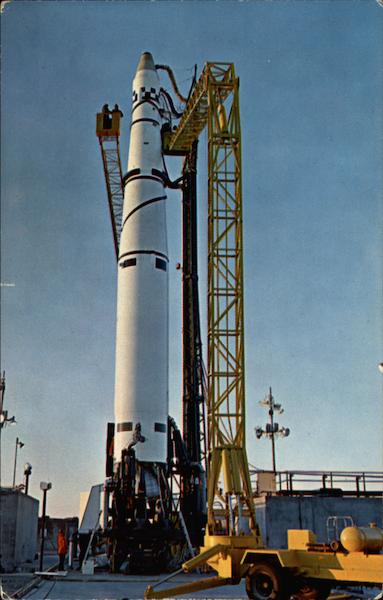

LOCATION OF PICTURE: Vandenberg Air Force
Base, California.
OWNED BY: Lockheed Aircraft Corp., Missile
Systems Diçision, Sunnyvale, Calif.; and
Douglas Aircraft Company, Inc., Santa
Monica, Calif.
MODEL: Hi-Ranger 10-95.
TRUCK: Mounted on 1958 Ford F-800, 230"
WB.
SPECIFICATIONS: Platform 24" x 48", 2 man
capacity; Rated capacity 500 lbs., min. tip-
ping load 750 lbs., overload tested at 1500
Ibs.; 95 ft. max. height ground to platform
floor; 100 ft. working height. "3D" single
hydraulic control in basket; self-centering
and self-compensating. Equipped with: 380°
turntable rotation, telephone communication
set from platform to ground, automatic
platform stop device, electric line installation
up booms with outlets at platform.
USED FOR: Missile adjustment and inspection.
Hi-Ranger has operator preferred features.
Prepared by Engineering Writers Agency
MOBILE AERIAL TOWERS, INC.
1730 North Harrison St. Fort Wayne, Indiana
S25949-1
