808
CRIE

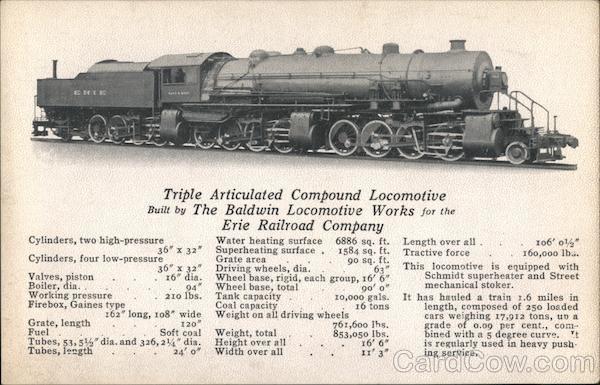

Triple Articulated Compound Locomotive
Built by The Baldwin Locomotive Works for the
Erie Railroad Company
Cylinders, two high-pressure
Water heating surface
36" x 32" Superheating surface
Grate area
6886 sq. ft. Length over all
1584 sq. ft.
90 sq. ft.
63"
106' o12"
160,000 lbs.
This locomotive is equipped with
Schmidt superheater and Street
Tractive force
Cylinders, four low-pressure
36" х 32"
16" dia.
Valves, piston
Boiler, dia.
Working pressure
Firebox, Gaines type
Driving wheels, dia.
Wheel base, rigid, each group, 16' 6"
Wheel base, total
Tank capacity
Сoa1 сараcity
Weight on all driving wheels
mechanical stoker.
94"
210 lbs.
90' o"
10,000 gals.
16 tons
162" long, 108" wide
120"
Soft coal
Tubes, 53,5½" dia. and 326, 24" dia.
24' o"
It has hauled a train 1.6 miles in
length, composed of 25o loaded
cars weighing 17,912 tons, ud a
grade of o.09 per cent., com-
bined with a 5 degree curve. It
is regularly used in heavy push-
ing service,
Grate, length
Fuel
Weight, total
Height over all
Width over all
761,600 lhs.
853,050 lbs.
16' 6"
1I' 3"
Tubes, length
