Norfolk and Western Railway Streamlined Locomotive

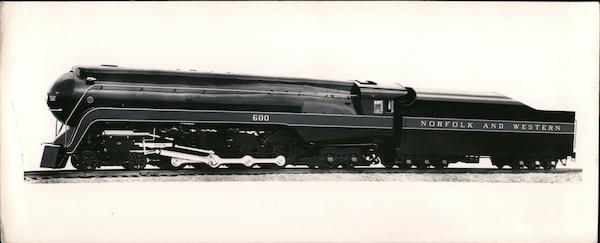

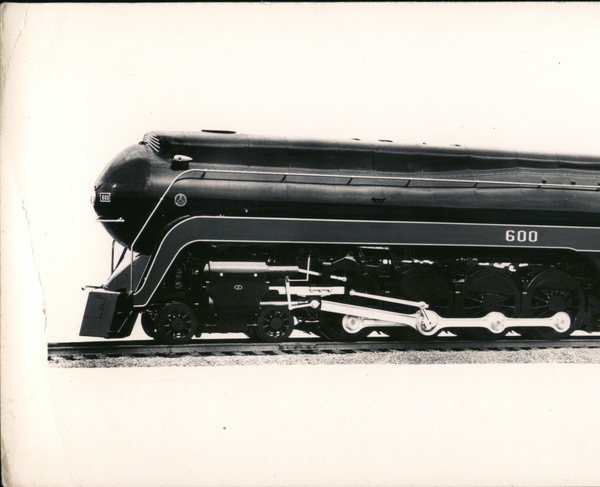

Front:
600 600 NORFO LK AND WESTERN

Back:

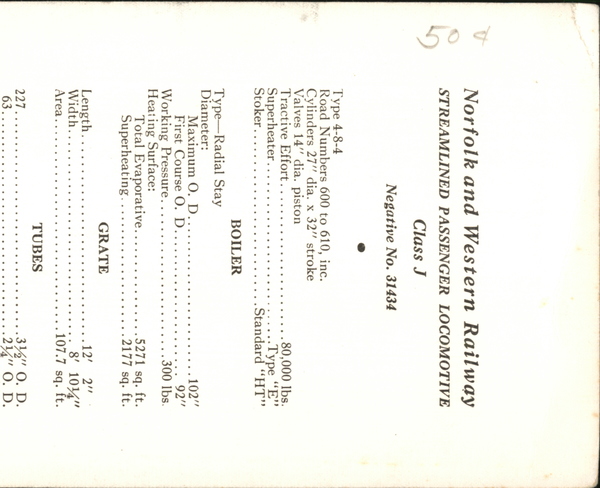

504 Norfolk and Western Railway STREAMLINED PASSENGER LOCOMOTIVE Class J Negative No. 31434 Type 4-8-4 Road Numbers 600 to 610, inc. Cylinders 27" dia. x 32" stroke Valves 14" dia. piston Tractive Effort... ..80,000 lbs. Superheater. ..Type “E” Stoker.. Standard “HT' BOILER Type-Radial Stay Diameter: Maximum 0. D..... ...102" First Course O. D...... 92' Working Pressure. ..300 lbs Heating Surface: Total Evaporative..... 5271 sq. ft. Superheating 2177 sq. ft. GRATE Length...... 12' 2' Width... 8' 1074" Area... 107.7 sq. ft. . TUBES 227.... .312" 0. D. 63.... .214" 0. D. Length.... 19292" DRIVING WHEELS Diameter Outside..... 70 in. Diameter Center. 62 in. JOURNALS Roller Bearings on all Engine and Tender Axles. WHEEL BASE Driving, rigid ..18' 9" Engine. .47' 312" Tender .. ..35' 10" Total Eng. & Tender. .95' 434" COUPLED LENGTH Engine.... ..61' 212" Tender.. .47' 1134" Total Eng. & Tender... . 109 274" WEIGHTS (In Working Order) On Driving Wheels.... .288,000 lbs. On Front Truck.... .101,600 lbs. On Trailing Truck .104,400 lbs. Total Engine... .494,000 lbs. Tender (Loaded)... 378,600 lbs. Total-Eng. & Tender ..., .872,600 lbs. TENDER Water Capacity... 20,000 gallons Coal Capacity.. ...35 tons Equipped with Needle Roller Bearings on Valve Gear, Timken Light Weight Reciprocating Parts and Roller Bearings on Crank Pins and Crosshead Pins.
