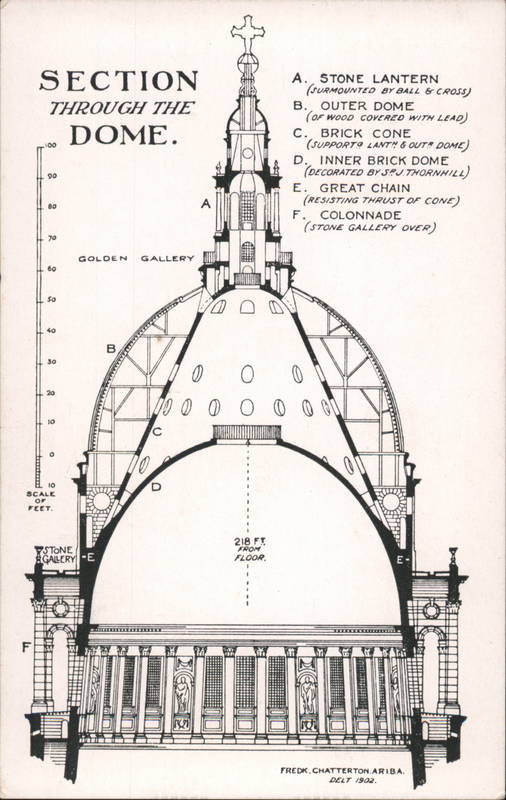

SECTION
THROUGH THE
DOME.
100
90
80
70
60
50
40
30
20
10
10
SCALE
OF
FEET.
GOLDEN GALLERY
STONE
GALLERY-E
по
50
0 O
A. STONE LANTERN
(SURMOUNTED BY BALL & CROSS)
B. OUTER DOME
(OF WOOD COVERED WITH LEAD)
C. BRICK CONE
(SUPPORTO LANTH & OUTR DOME)
INNER BRICK DOME
(DECORATED BY SRJ.THORNHILL)
E. GREAT CHAIN
(RESISTING THRUST OF CONE)
COLONNADE
(STONE GALLERY OVER)
ооооо оо
218 FT
FLOOR.
F.
(0
rot
01
FREDK.CHATTERTON.ARI.B.A.
DELT 1902.
Back:
ST. PAUL'S CATHEDRAL, LONDON.
SECTION THROUGH THE DOME.
